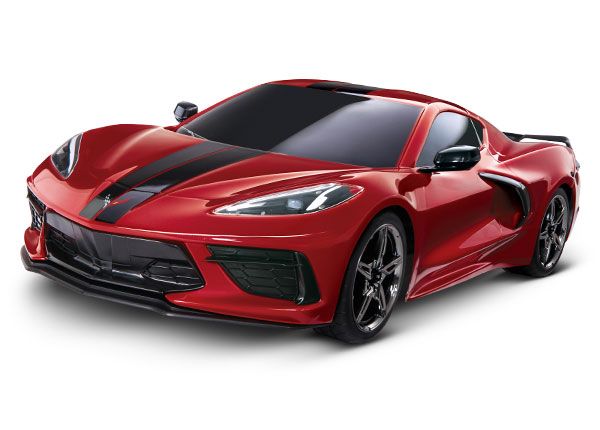

Traxxas Chevrolet Corvette Stingray: 1/10 AWD Supercar - Red
The name synonymous with American sports car excellence: Corvette. Traxxas delivers the spirit and excitement of the all-new mid-engine Corvette in exacting scale detail on the new, larger 4-Tec 3.0 chassis. The new Traxxas 4-Tec 3.0 puts supercar performance in your hands with a new long-wheelbase, wide-track design. The faceted, Corvette Stingray body and its massive side intakes are duplicated to the millimeter. The simulated LT2 V8 is visible beneath the rear hatch. Authentic black-chrome wheels fill the fenders. Beautiful to display - with Traxxas performance that demands you to drive
INNOVATION
The Traxxas 4-Tec 3.0 AWD Chassis is the perfect complement to the Corvette Stingray. Insightful design touches and precision engineering, combined with a low-CG, mid-motor configuration and fully adjustable suspension, make the Traxxas Stingray as exciting and capable as the real thing.
DETAILS
Look beneath the Corvette Stingray's exotic lines to reveal the individual design details that make the 4-Tec 3.0 chassis so rewarding. Traxxas examined every detail in order to create a dynamic, high-tech vehicle that's as easy to operate as it is exciting to drive.
Car Specifications | |
---|---|
Length: | 19.4 inches (492mm) |
Front Track: | 8.1 inches (204mm) |
Rear Track: | 8.0 inches (202mm) |
Total Width (mirrors): | 8.9 inches (227mm) |
Ground Clearance: | 0.3 inches (9mm) |
Weight: | 3.92lbs (1.78kg) with body (no battery) |
Height (ride): | 5.1 inches (130mm) |
Wheelbase: | 11.3 inches (288mm) |
Shock Length | Short (front and rear) |
Tire Diameter: | 2.8 inches (73mm) |
Tire Width (front): | 1.1 inches (28mm) |
Tire Width (rear): | 1.3 inches (32mm) |
Wheel Diameter: | 2.1 inches (54mm) |
Speed Control: | XL-5 Electronic Speed Control |
Motor (electric): | Titan 12T 550 (12-Turn) |
Transmission: | Single Speed Direct Drive |
Overall Drive Ratio: | 11.38 |
Differential Type: | Sealed, Hardened Steel Bevel, Limited Slip |
Gear Pitch: | 48 |
Chassis Structure/Material: | Molded Tub / Nylon Composite |
Brake Type: | Electronic |
Drive System | Shaft-Driven 4WD |
Steering: | Dual-Bellcrank |
Radio System: | TQ 2.4GHz Transmitter |
Servo: | #2075 High Torque Waterproof |
Top Speed: | 30+mph (with included optional pinion gear) |
Skill Level: | 1 |
Battery Tray: | 158mm long / 46mm wide / 23 or 26mm high |
- Officially Licensed Corvette Stingray Body
- Clipless body eliminates body post holes
- Highly-detailed replica engine bay
- Injection molded details
- Front grilles, rear diffuser, side intakes, side mirrors, and spoiler
- LED-Ready front and rear lenses
- Replica black chrome wheels with lug nut detail
- Replica brake discs with red calipers
- Clipless Body Mounts
- Easy removal of the body
- Front bumper/splitter incorporates the front body mount
- Rear window assembly disguises the rear body mount
- High-Performance Waterproof XL-5 Electronic Speed Control
- Innovative waterproof design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set one-button setup
- LiPo and NiMH compatible with two-stage low-voltage
- TQ 2.4GHz Radio System
- Traxxas #6519 3-channel micro receiver
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Motor
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Fixed gear mesh motor plate makes setting gear mesh simple with 11 different gearing positions
- 30+mph with included optional pinion gear
- Molded wire retainer keeps motor wires secure
- Steering
- High-torque waterproof Traxxas #2075 steering servo
- Precise servo saver integrated into servo horn
- High steering angle option
- Low Center of Gravity (Low CG) Chassis
- Positions weight low for improved handling
- Smooth underside resists drag and snags
- Angled front bumper improves approach angle
- Modular interlocking chassis pieces
- Improves rigidity and tightens tolerances
- Allows for easy maintenance
- High Performance Suspension
- Captured links won't pop off
- Geometry tuned for precise handling
- Dual rear camber link mounts
- Adjustable droop
- Adjustable Battery Hold Down
- Easy, secure battery installation
- Swivels to allow different height batteries
- Locks securely without pins or parts to lose
- Efficient Direct All-Wheel Drive
- Full-time shaft driven 4-wheel drive
- Steel center driveshaft with center bearing support
- Direct drive
- Sealed, silicone-filled differential
- Brushless ready for easy Velineon brushless power upgrade
- Wheels and Tires
- Replica Corvette Stingray black chrome wheels
- High-performance tires with long-wearing compound
- Wider rear tires for a more aggressive stance
- Replica brake discs incorporate standard 12mm wheel hexes
- Brake calipers can be mounted in forward or trailing edge positions
- Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks with X-ring technology
- Red powder coated shock springs feature a responsive spring rate
- Rubber-Sealed Ball Bearings
- Requires Traxxas 7-Cell NiMH "flat pack" or 2-Cell LiPo Battery and Charger (Sold Separately)
- Backed by Unparalleled Traxxas Support and Parts Availability
What's Included:
- Traxxas Corvette Stingray, Ready-To-Race Model with Titan 12T 550 Motor
- XL-5 Waterproof Electronic Speed Control
- TQ 2.4GHz Radio System
- Quick Start Guide
- High Quality Maintenance Tools
- Optional High Speed Pinion Gear
What's Needed:
- Battery Pack
- Corvette Stingray requires the use of a 7-Cell NiMH "flat pack" or 2-Cell LiPo Battery equipped with a Traxxas High Current Connector.
- Charger
- Traxxas EZ-Peak Plus (TRA2970) recommended.
- AA Alkaline Batteries
- Four AA alkaline batteries for the transmitter
